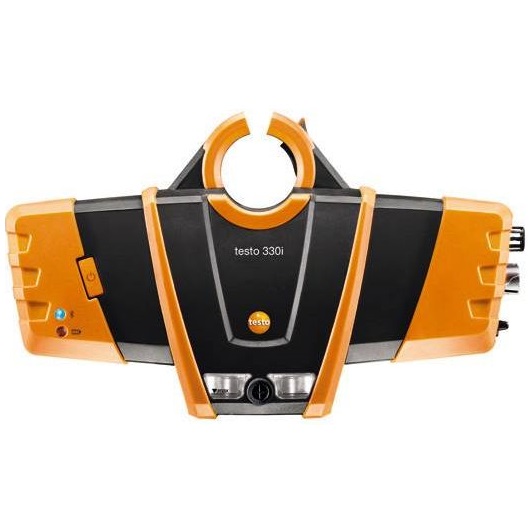

آنالایزر گاز دودکش (دارای سنسور NO و H2 جبران شده و سنسور اندازه گیری CO) تستو testo 330i | 330i
Order-No. 0632 3000 73
General technical data
Weight | 720 g (excluding battery) |
Dimensions | 270 x 160 x 57 mm |
Operating temperature | -5 to +45 °C |
Power supply | Rech. batt. block 3.7 V / 2.6 Ah; Mains unit 6 V / 1.2 A (optional) |
System requirements | requires iOS 7.1 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0 |
Maximum memory | 500000 readings |
Storage temperature | -20 to +50 °C |
Differential Pressure - Piezoresistive
Measuring range | 0 to 300 hPa |
Accuracy | ±0.5 hPa (0.0 to +50.0 hPa) ±1 % of mv (+50.1 to +100.0 hPa) ±1.5 % of mv (Remaining Range) |
Resolution | 0.1 hPa |
Flue gas O₂
Measuring range | 0 to 21 Vol.% |
Accuracy | ±0.2 Vol.% |
Resolution | 0.1 Vol.% |
Flue gas CO (with H₂-compensation)
Measuring range | 0 to 8000 ppm |
Accuracy | ±10 ppm or ±10 % of mv (0 to 200 ppm) ±20 ppm or ±5 % of mv (201 to 2000 ppm) ±10 % of mv (2001 to 8000 ppm) |
Resolution | 1 ppm |
CO determination (with H₂-compensation), automatic dilution
Measuring range | 0 to 30000 ppm |
Accuracy | ±200 ppm or ±20 % of mv (0 to 30000 ppm) |
Resolution | 1 ppm |
Flue gas NO
Measuring range | 0 to 3000 ppm |
Accuracy | ±5 ppm (0 to 100 ppm) ±5 % of mv (101 to 2000 ppm) ±10 % of mv (2001 to 3000 ppm) |
Resolution | 1 ppm |
Differential Pressure flue gas Draught - Piezoresistive
Measuring range | -9.99 to +40 hPa |
Accuracy | ±0.02 hPa or ±5 % of mv (-0.50 to +0.60 hPa) ±0.03 hPa (+0.61 to +3.00 hPa) ±1.5 % of mv (3.01 to +40.00 hPa) (the greater value applies) |
Resolution | 0.01 hPa |
Temperature
Measuring range | -40 to +1200 °C |
Accuracy | ±0.5 °C (0.0 to +100.0 °C) ±0.5 % of mv (Remaining Range) |
Resolution | 0.1 °C (-40 to +999.9 °C) 1 °C (Remaining Range) |
dependent on the thermocouple in the flue gas probe
Flue gas degree of effectivity, Eta (calculated)
Measuring range | 0 to 120 % |
Resolution | 0.1 % |
Flue gas loss (calculated)
Measuring range | n1{#0} to 99.9 % |
Resolution | 0.1 % |
Flue gas CO₂ calculation (calculated from O₂)
Measuring range | Display range 0 to CO₂ max ±0.2 CO₂ max |
Resolution | 0.1 Vol.% |
